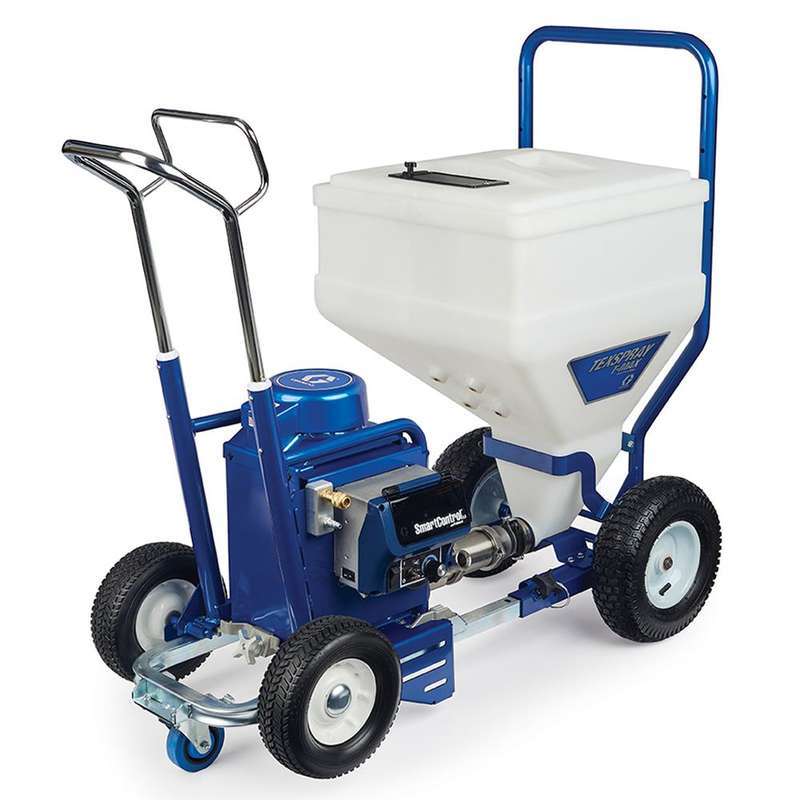

Graco 17X980 T-max 506 Putty Sprayer
The new Graco T-Max 506 putty sprayer is designed for applying various putties and plasters to surfaces.
Product details
- Funnel capacity
- 50 Liters
- Max hose length
- 13 M
- Max. nozzle
- 0.051
- Max. productivity
- 6,4 l/min
- Max. work pressure
- 50 bar
- Power supply
- 220 V
- Weight
- 64 kg
Documents
PDFMore information about the machinePDFTechnical drawingsPDFGun drawingsThe new Graco T-Max 506 putty sprayer is designed for applying various putties and plasters to surfaces.
The device works without a compressor when using ready-mixed putties; however, if you use powder putties or want a textured finish, an additional compressor is necessary.
WARRANTY:
Motor: 5 years
Electronics: 2 years
Additionally:
The 506 is also a universal device capable of handling both putties and facade adhesive and reinforcing mixtures.
A plus of the device is its 220 V operating voltage and compact dimensions. The device can be disassembled without tools; if a blockage or another issue occurs, the machine can be quickly dismantled and cleaned on-site.
A plus of the device is its 220 V operating voltage and compact dimensions. The device can be disassembled without tools; if a blockage or another issue occurs, the machine can be quickly dismantled and cleaned on-site.
