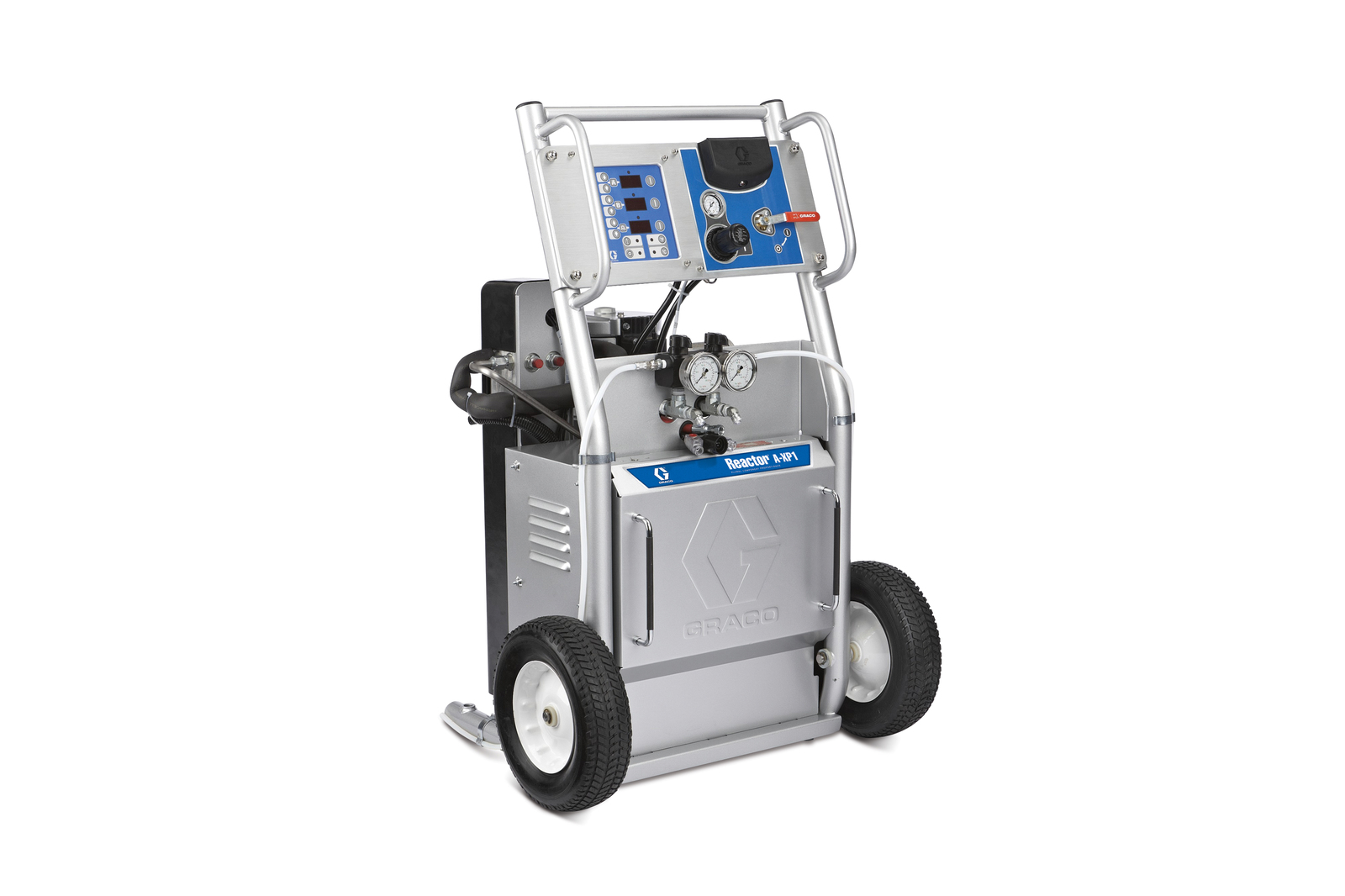

Graco Reactor A-XP1 AP with Gun

Reactor A-XP1 is a coating spray system designed by Graco, delivering the reliability on the jobsite that you expect. The unit maintains consistent temperature control even at maximum flow rate, resulting in a higher-quality coating.

For spraying polyurea coatings – capacity up to 1.5 gallons (5.7 L) per minute.

Three heating zones

• Three independent heating zones – ISO, resin and hose

• Provide precise temperature control for reliable spraying and for handling different chemical viscosities

• Digital temperature controls

Recirculation loop / recirculation manifold

• A fast and easy way to balance system pressures

NXT pneumatic motor

• Low air consumption for improved efficiency

• Muffler ensures low noise levels during operation

• Air valve enables smooth and fast changeover

ISO pump lubrication system

• Prevents isocyanate crystallization on the pump seal and shaft

Hybrid heater

• Ensures better temperature control

Technical data:

Max hose length (m): 64
Max material temperature: 77ºC
Max power (kW) 13
Max current (A, 3-phase): 26

Package includes:
Fusion® AP Gun
Heated hose - 15 m
Short whip hose before the gun - 3 m

Gun technical drawings: here

Machine technical drawings: here

Hose and gun selection: here

New required accessory for the Reactor – an adjustable air valve that allows you to adjust the fan width for precise spraying in narrow and hard-to-reach areas. The video about this product is here:
