GRACO Two-Component Painting Device XM70
Product details
Max. productivity
11,4l/min
Max. work pressure
434bar
The XM70 is ideal for high-demand, large-scale applications. It is built to move more fluid quickly and efficiently, catering to industries that require a higher output. Capable of handling high pressure applications and heavy-duty industrial tasks where thick or high-viscosity materials need to be pumped at higher pressures.
No matter the material or the ratio it requires, XM70 has you covered! Save time and money by mixing only the material you need, while also eliminating hand-mixing errors. Equipped with intuitive user controls, real-time display of ratio, and even downloadable data reporting, you can be assured that the job was done right — every time.
- Exclusive Xtreme Pump Lowers
- Proven performance you can count on
- Multiple sizes available to provide various fixed mix ratios
- Easily change one or both lowers to get desired mix ratio
- Heavy-duty piston rods for long life
- XL6500 10 Inch Air Motors
- The proven air motor that is designed to keep you spraying and eliminate icing
- Heavy-duty aluminum, steel and composite construction for years of service
- De-ice valve keeps system ice-free during heavy icing conditions
- Precision Dosing Valves and Outlet Manifold
- Precision dosing valves ensure the right ratio every time
- Provides automatic overpressure relief
- Allows circulation back to the supply for pump priming, purging or relieving outlet pressure
- Allows fluid warm-up circulation with integrated heaters
- Viscon HF Primary Heaters
- Reduces coating viscosity and improves spray pattern
- Fully accessible heater core with serviceable heating elements
- Easy to service
- Mix Manifold
- Provides simple fluid control for mixing or flushing
- Easily handles high-solids coatings with oversized porting and less pressure drop
- Position on unit, or remotely for ultimate convenience
- Optional 25 Gal SST-Lined Heated Hoppers
- Double-walled construction with 3000w heaters to condition material
- Xtreme-Duty agitators easily mixes high viscosity coatings
- 5:1 Monark Feed pumps easily transport materials from hopper to pumps
- Intuitive User Controls
- Adjustable ratio control from 1:1 to 10:1
- LCD Display for real-time system information
- Ratio alarms automatically shut the system down in case of issues — saving time and money

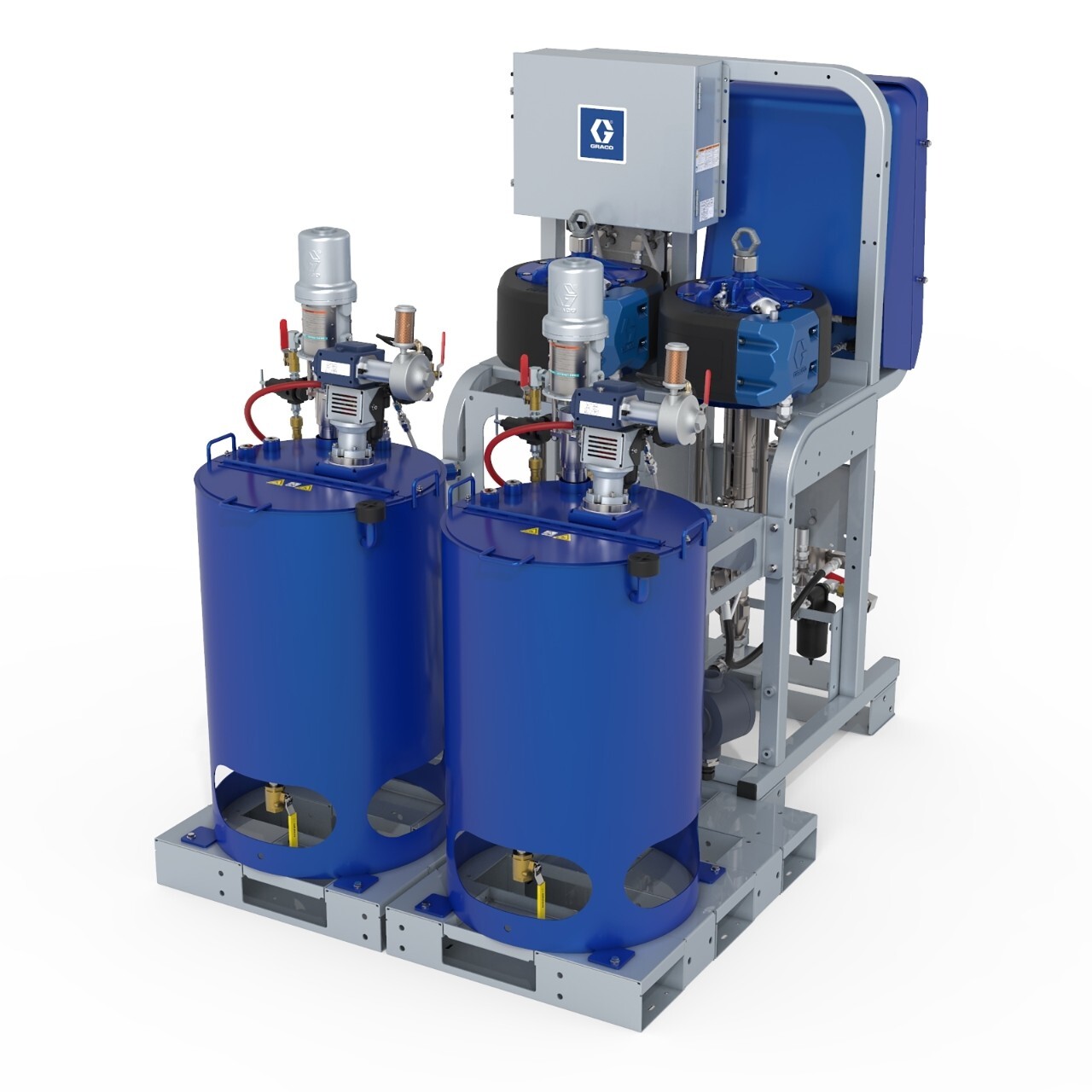

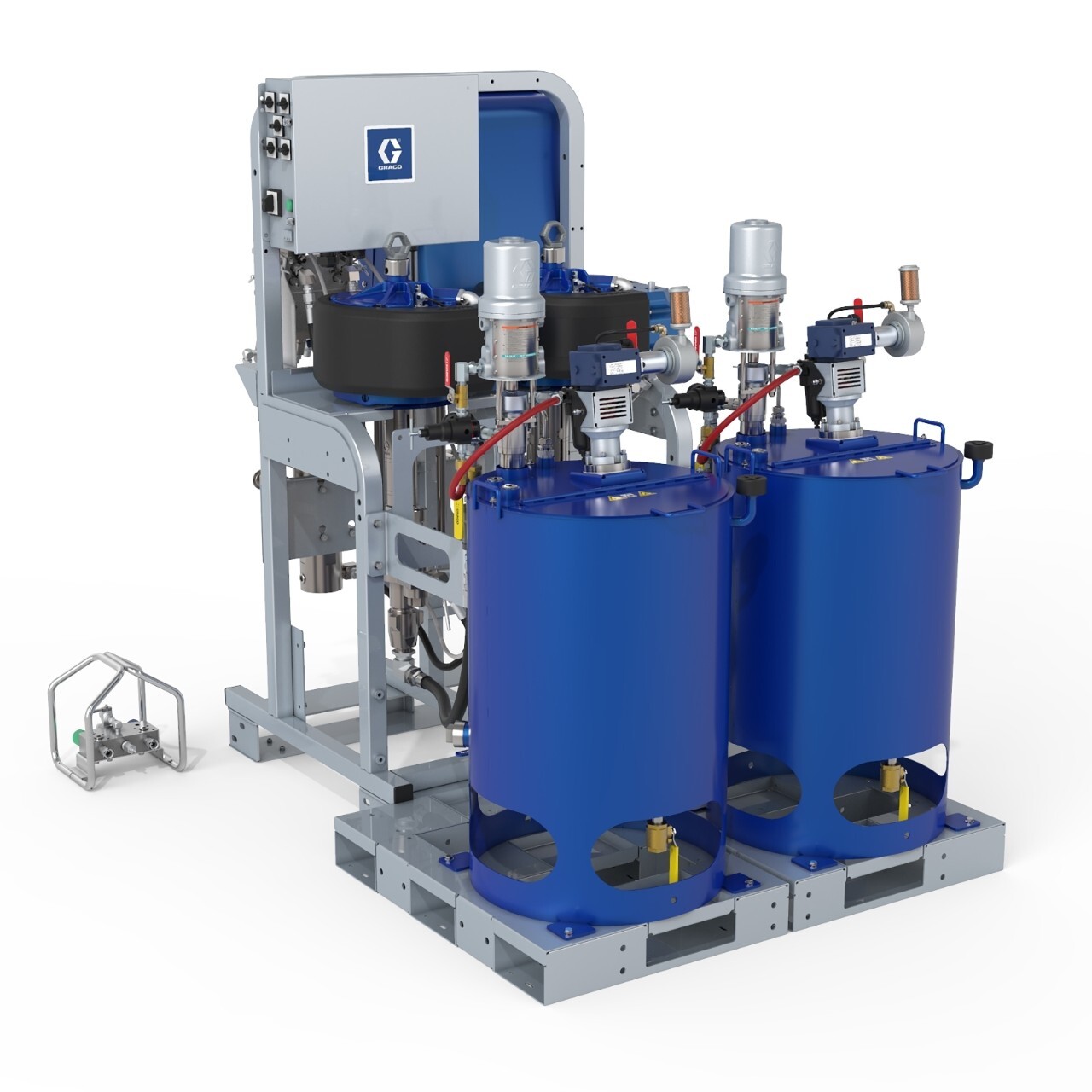

Graco Two-Component Paint System XM70
Heated material barrels, plus separate paint heaters
Barrel capacity 95 liters
Max Mixing Ratio 10:1
More information about the machine: here
